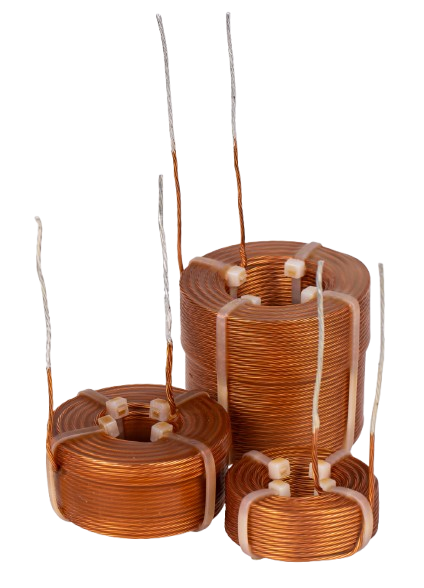

Litz wire wax coil

-
-
-
-
-
-
-

Index: 000-L-00025 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.0250 mH
DCR0.0400 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø35 mm
Height20 mm

Index: 000-L-0006 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.0600 mH
DCR0.0800 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø46 mm
Height20 mm

Index: 000-L-0008 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.0800 mH
DCR0.0800 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø46 mm
Height20 mm

Index: 000-L.14-0010 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.1000 mH
DCR0.0600 Ω
Wind. Wire (total cross section) 1.60 mm
AWG14
Dimensions
Inner ø 25 mm
Outer ø53 mm
Height20 mm

Index: 000-L-0010 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.1000 mH
DCR0.0900 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø46 mm
Height20 mm

Index: 000-L-0012 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.1200 mH
DCR0.1100 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø46 mm
Height20 mm

Index: 000-L-00125 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.1250 mH
DCR0.1100 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø47 mm
Height20 mm

Index: 000-L-0013 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.1300 mH
DCR0.1100 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø47 mm
Height20 mm

Index: 000-L.14-0014 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.1400 mH
DCR0.0800 Ω
Wind. Wire (total cross section) 1.60 mm
AWG14
Dimensions
Inner ø 25 mm
Outer ø55 mm
Height20 mm

Index: 000-L.14-0015 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.1500 mH
DCR0.0800 Ω
Wind. Wire (total cross section) 1.60 mm
AWG14
Dimensions
Inner ø 25 mm
Outer ø58 mm
Height20 mm

Index: 000-L-0015 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.1500 mH
DCR0.1200 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø47 mm
Height20 mm

Index: 000-L-0016 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.1600 mH
DCR0.1200 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø47 mm
Height20 mm

Index: 000-L.14-0018 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.1800 mH
DCR0.0900 Ω
Wind. Wire (total cross section) 1.60 mm
AWG14
Dimensions
Inner ø 25 mm
Outer ø60 mm
Height20 mm

Index: 000-L-0018 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.1800 mH
DCR0.1300 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø50 mm
Height20 mm

Index: 000-L.14-0020 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.2000 mH
DCR0.1200 Ω
Wind. Wire (total cross section) 1.60 mm
AWG14
Dimensions
Inner ø 25 mm
Outer ø51 mm
Height30 mm

Index: 000-L-0020 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.2000 mH
DCR0.1500 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø55 mm
Height20 mm

Index: 000-L.14-0022 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.2200 mH
DCR0.1000 Ω
Wind. Wire (total cross section) 1.60 mm
AWG14
Dimensions
Inner ø 25 mm
Outer ø55 mm
Height30 mm

Index: 000-L-0022 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.2200 mH
DCR0.1500 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø55 mm
Height20 mm

Index: 000-L-0024 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.2500 mH
DCR0.1500 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø55 mm
Height20 mm

Index: 000-L-0025 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.2500 mH
DCR0.1500 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø55 mm
Height20 mm

Index: 000-L-0026 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.2600 mH
DCR0.1500 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø55 mm
Height20 mm

Index: 000-L-0027 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.2700 mH
DCR0.1600 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø55 mm
Height20 mm

Index: 000-L.14-0027 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.2700 mH
DCR0.1100 Ω
Wind. Wire (total cross section) 1.60 mm
AWG14
Dimensions
Inner ø 25 mm
Outer ø63 mm
Height30 mm

Index: 000-L.14-0029 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.2900 mH
DCR0.1200 Ω
Wind. Wire (total cross section) 1.60 mm
AWG14
Dimensions
Inner ø 25 mm
Outer ø64 mm
Height30 mm

Index: 000-L-0030 Copied

Litz Wire Wax Coil

Electrical properties
Inductance0.3000 mH
DCR0.1600 Ω
Wind. Wire (total cross section) 1.40 mm
AWG15
Dimensions
Inner ø 25 mm
Outer ø58 mm
Height20 mm
